• Air conditioning, rear
• Air conditioning, single-zone manual
• Cruise control
• Headliner, cloth
• Oil life monitor

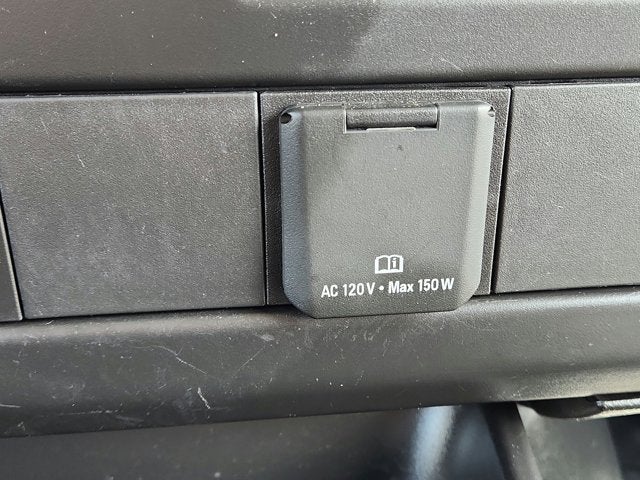

• Power outlet, 120-volt
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASS-Key III
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear-wheel drive
• Steering, power
• Suspension, rear hypoid drive axle with multi-leaf springs

• Daytime Running Lamps
• Door beams, steel-side
• Hill Start Assist
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Tire Pressure Monitoring System (does not apply to spare tire)

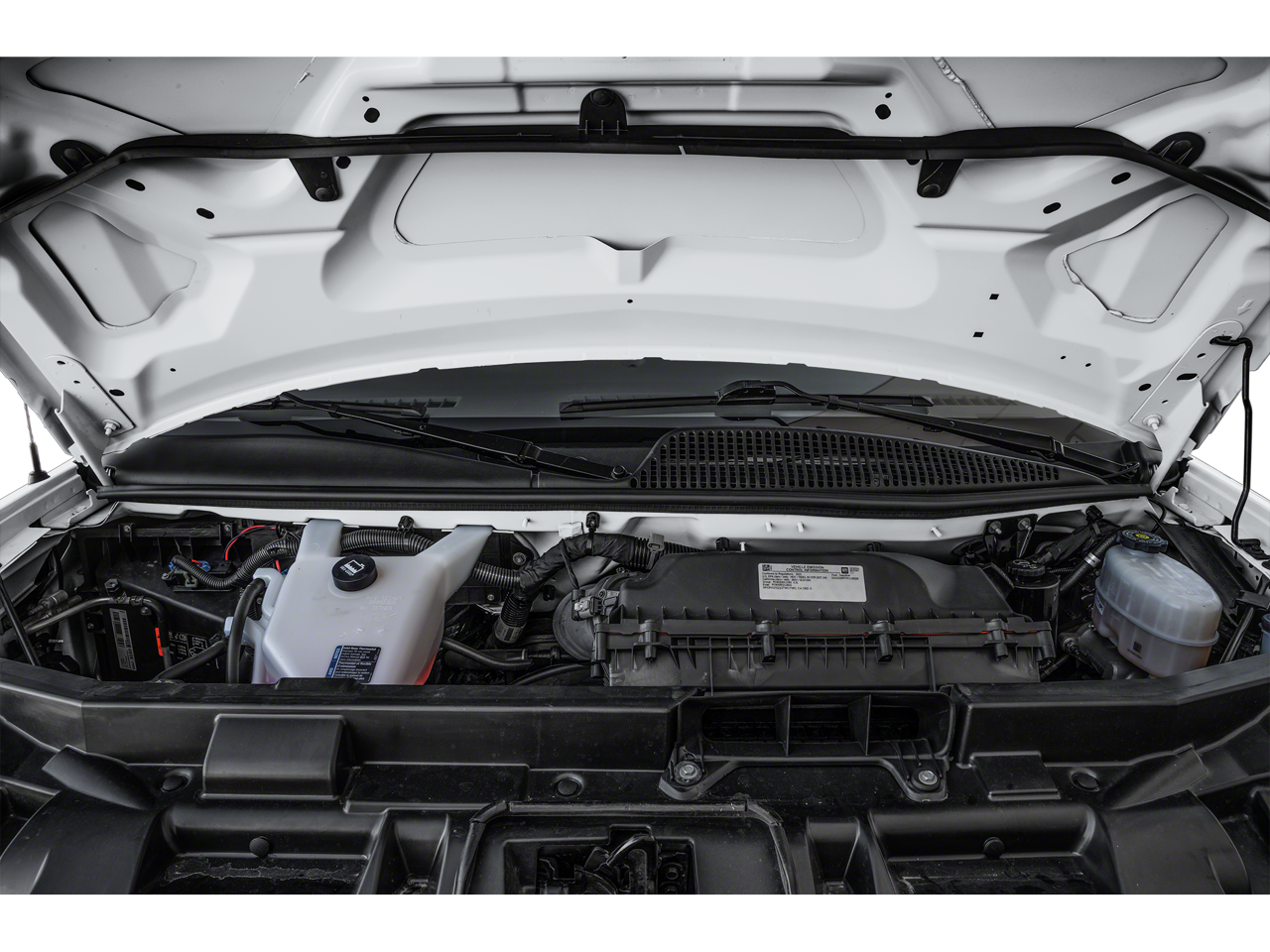

ENGINE, 4.3L V6 WITH DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction (276 hp [206 kW] @ 5200 rpm
• 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)

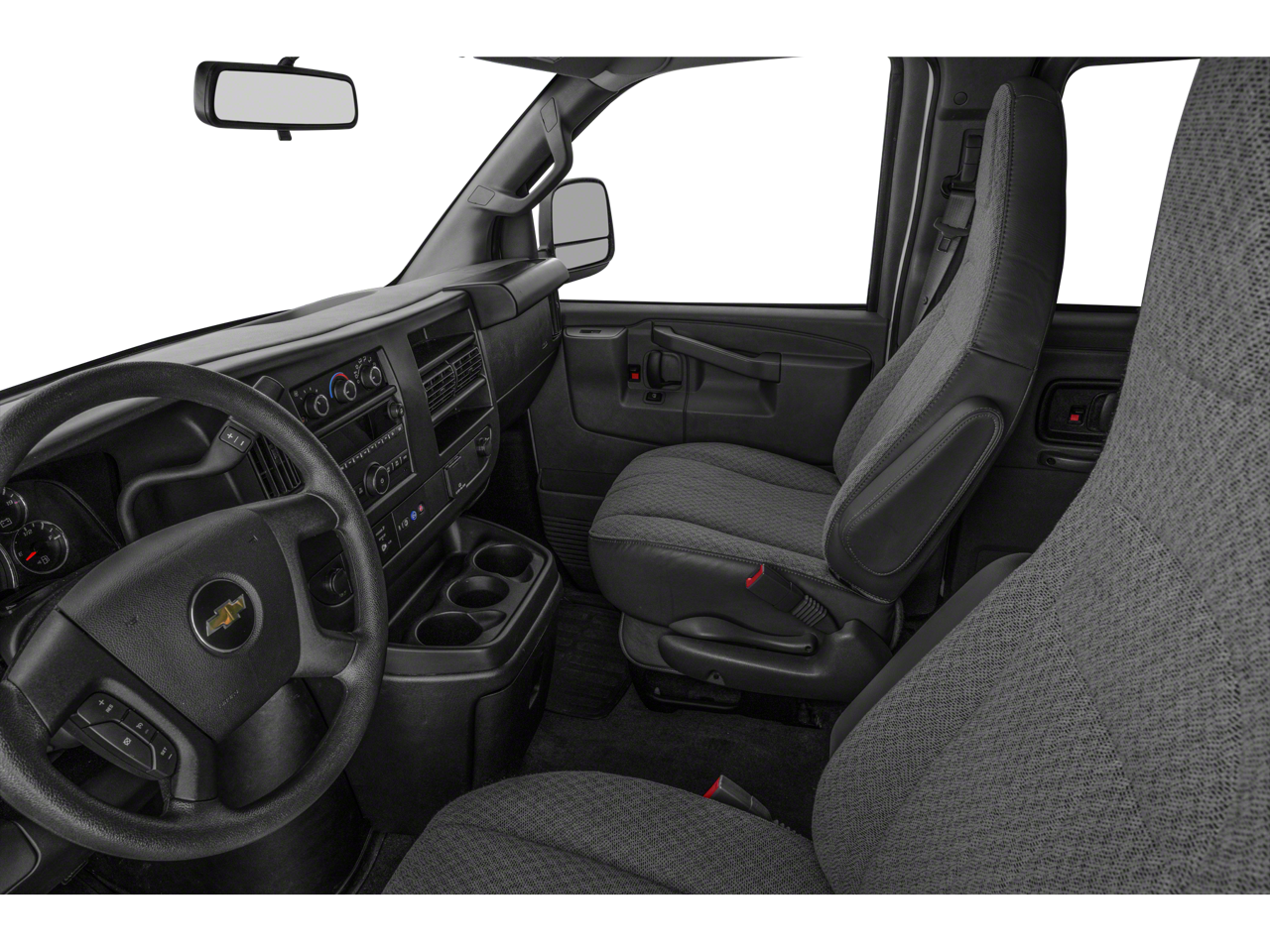

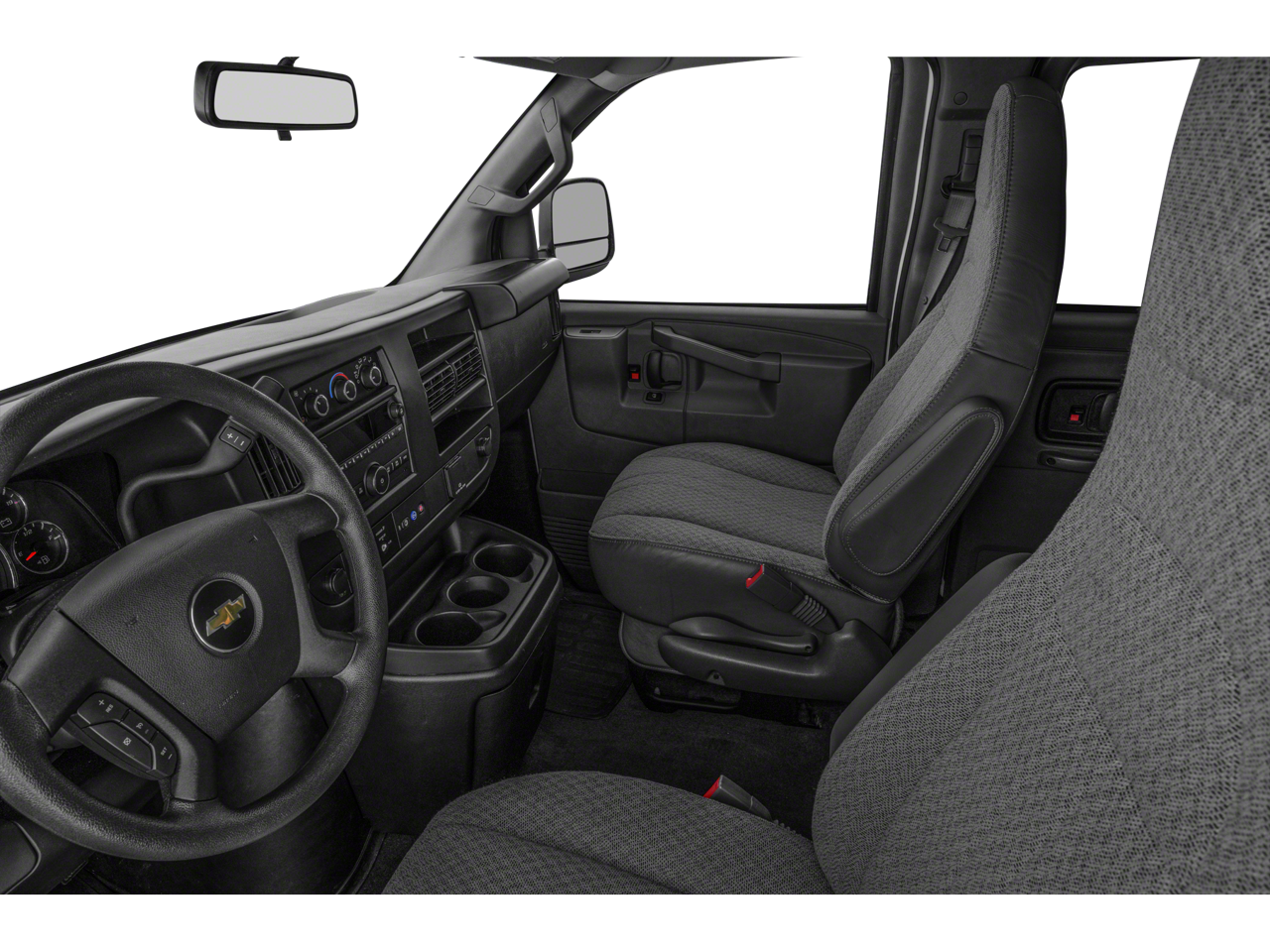

• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• THEFT ALARM NOTIFICATION requires paid plan working electrical system cell reception GPS signal armed GM factory-installed theft-deterrent system contact method on file and enrollment to receive alerts. Message and data rates may apply. See onstar.com for details and limitations

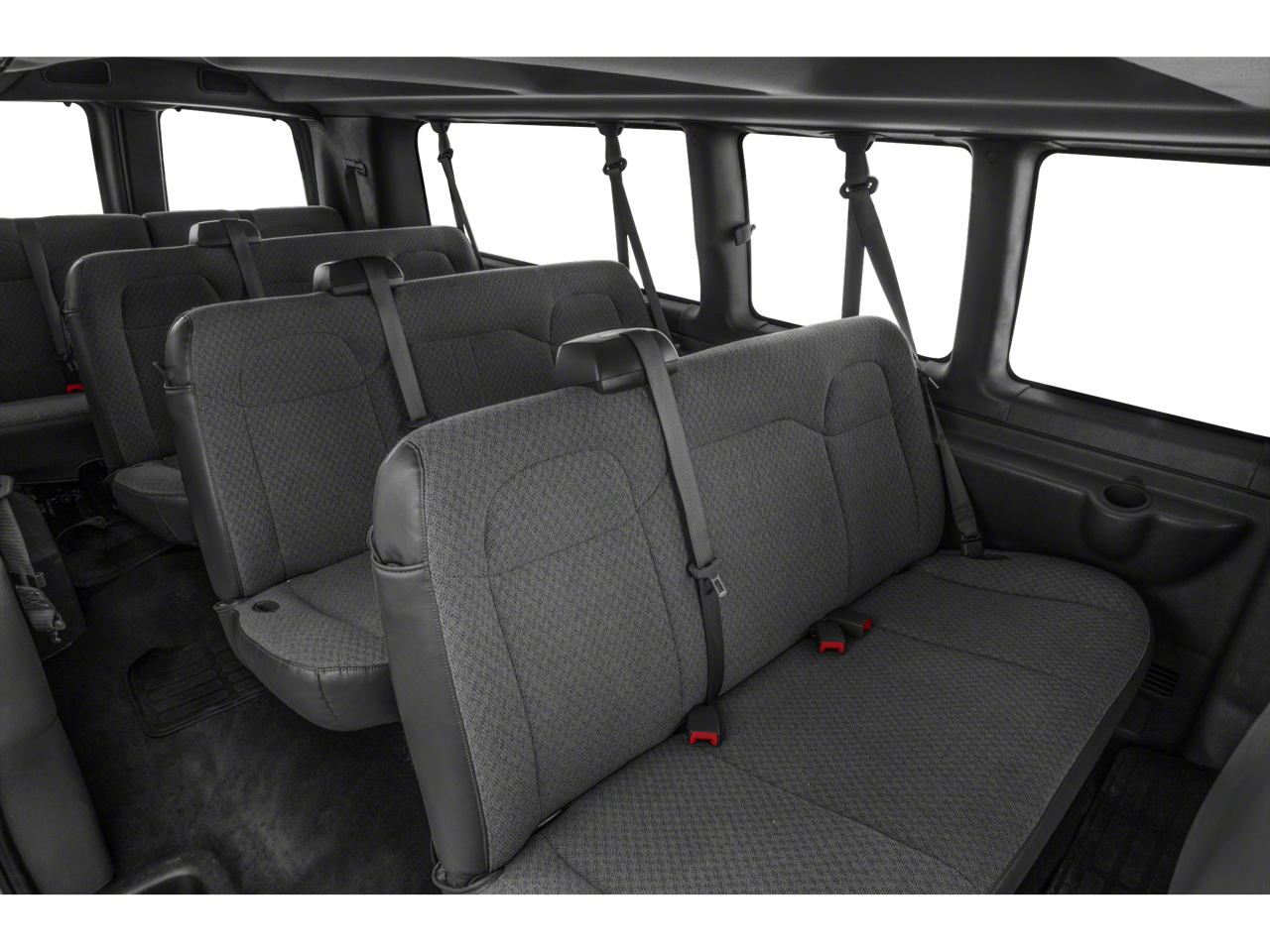

• SEATING 12-PASSENGER (2-3-3-4 SEATING CONFIGURATION) 4-passenger seat is a 50/50 split 2-piece configuration (STD)
• GVWR 9600 LBS. (4354 KG) (STD)
• TRANSMISSION 8-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• ENGINE 4.3L V6 WITH DIRECT INJECTION and Variable Valve Timing includes aluminum block construction (276 hp [206 kW] @ 5200 rpm 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)
• SUMMIT WHITE

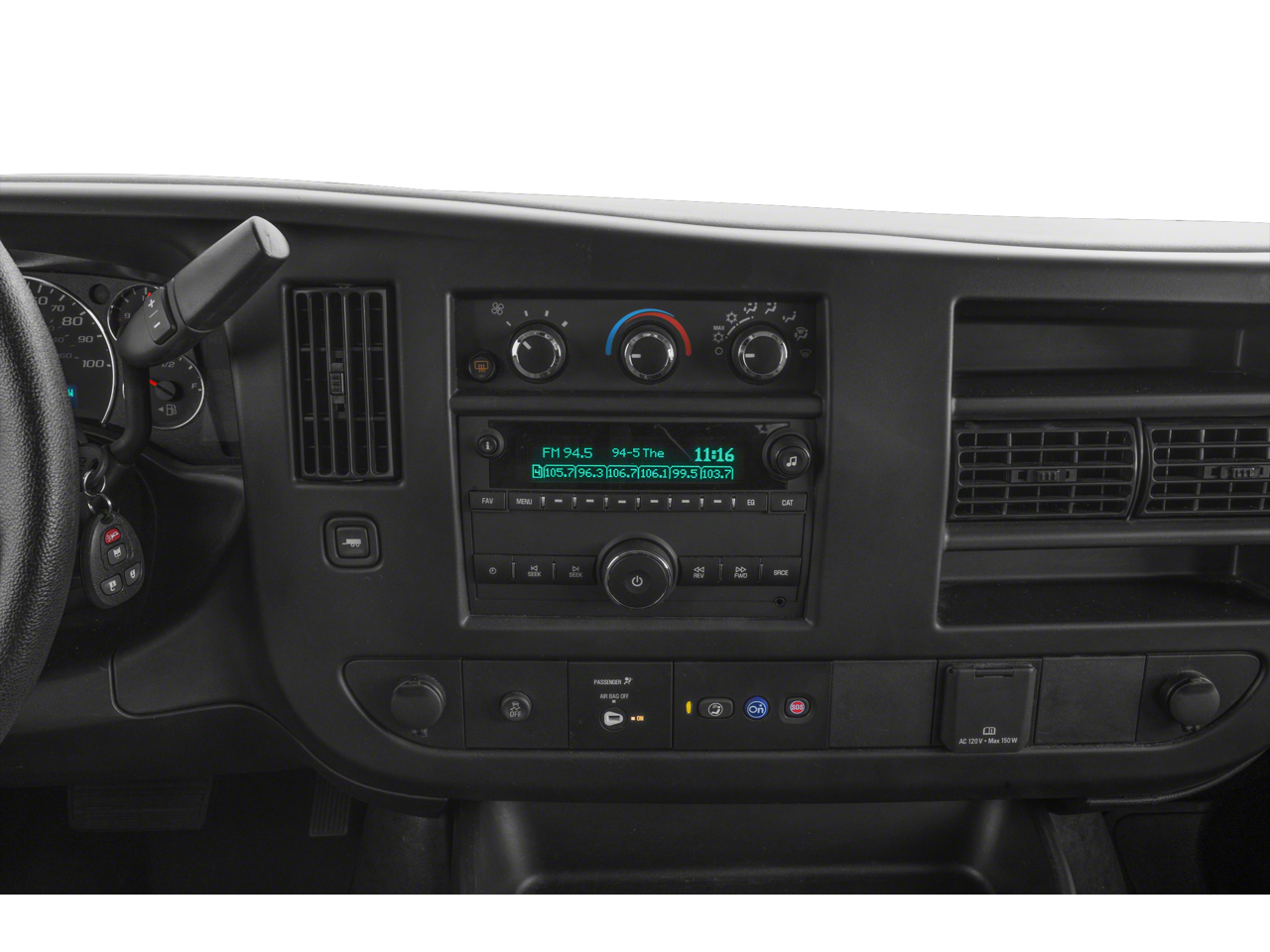

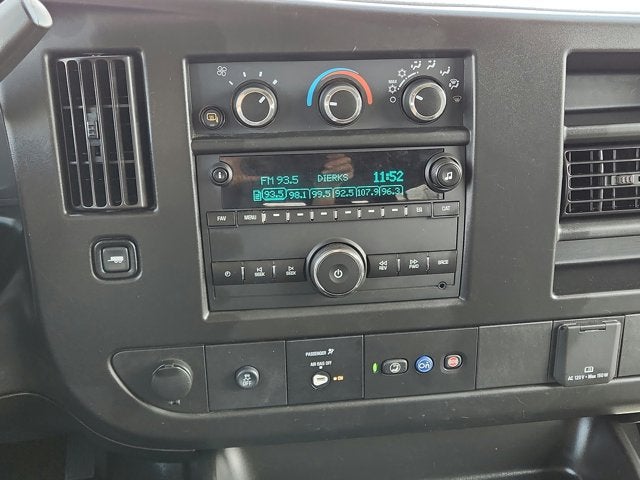

• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• SEAT ADJUSTER DRIVER 6-WAY POWER
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO ADRIAN STEEL
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• REAR PARK ASSIST
• MEDIUM PEWTER CUSTOM CLOTH

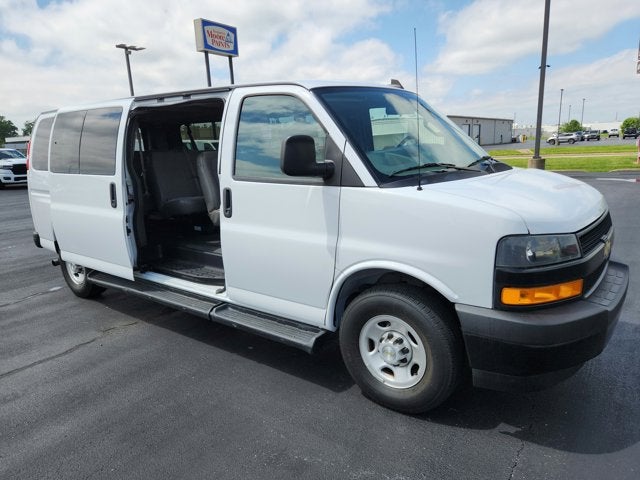

• DOOR SLIDING PASSENGER-SIDE

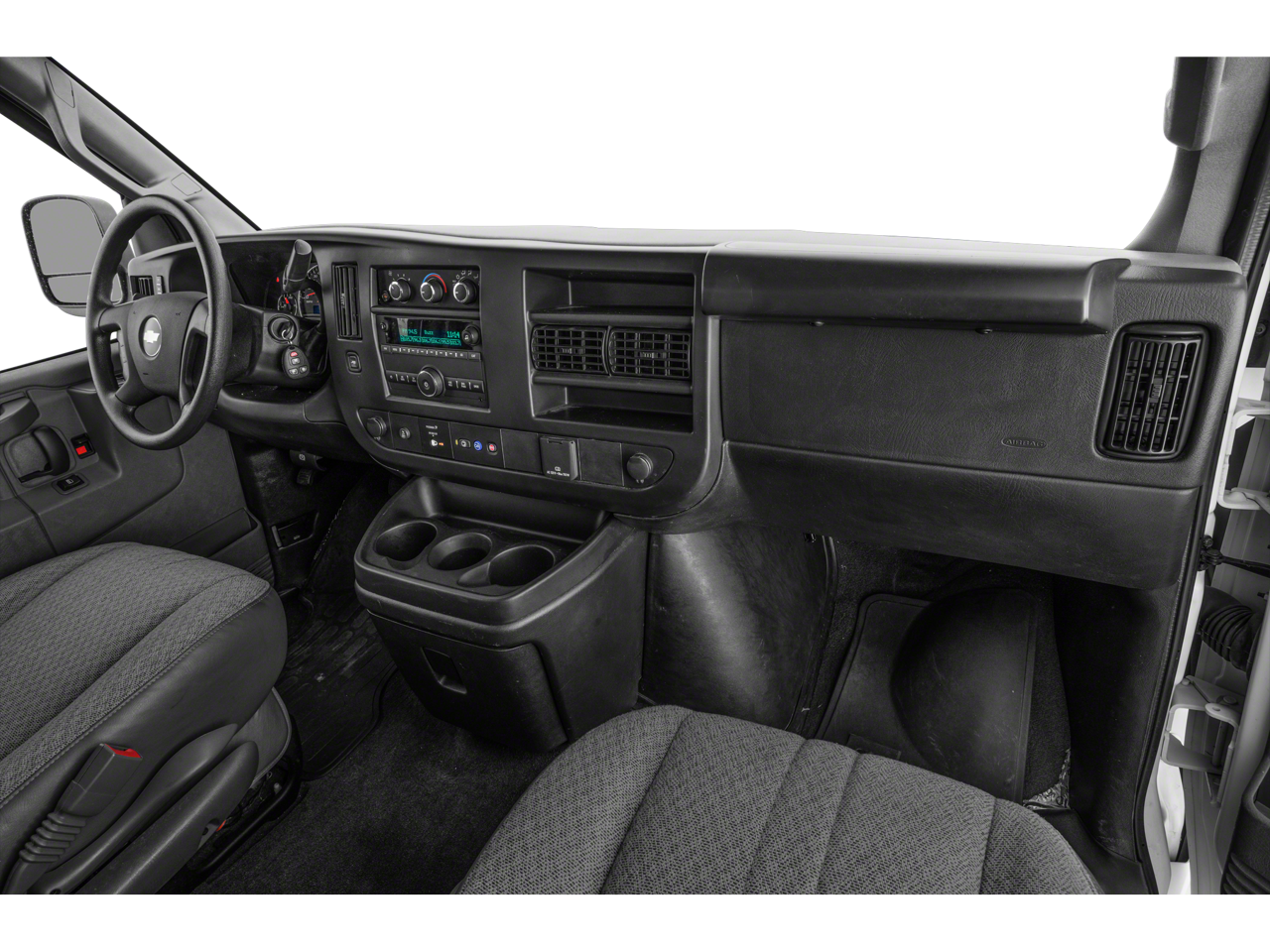

• CONSOLE DELUXE with swing-out storage bin
• LS PREFERRED EQUIPMENT GROUP includes standard equipment
• PAINT SOLID (STD)
• Cruise Control

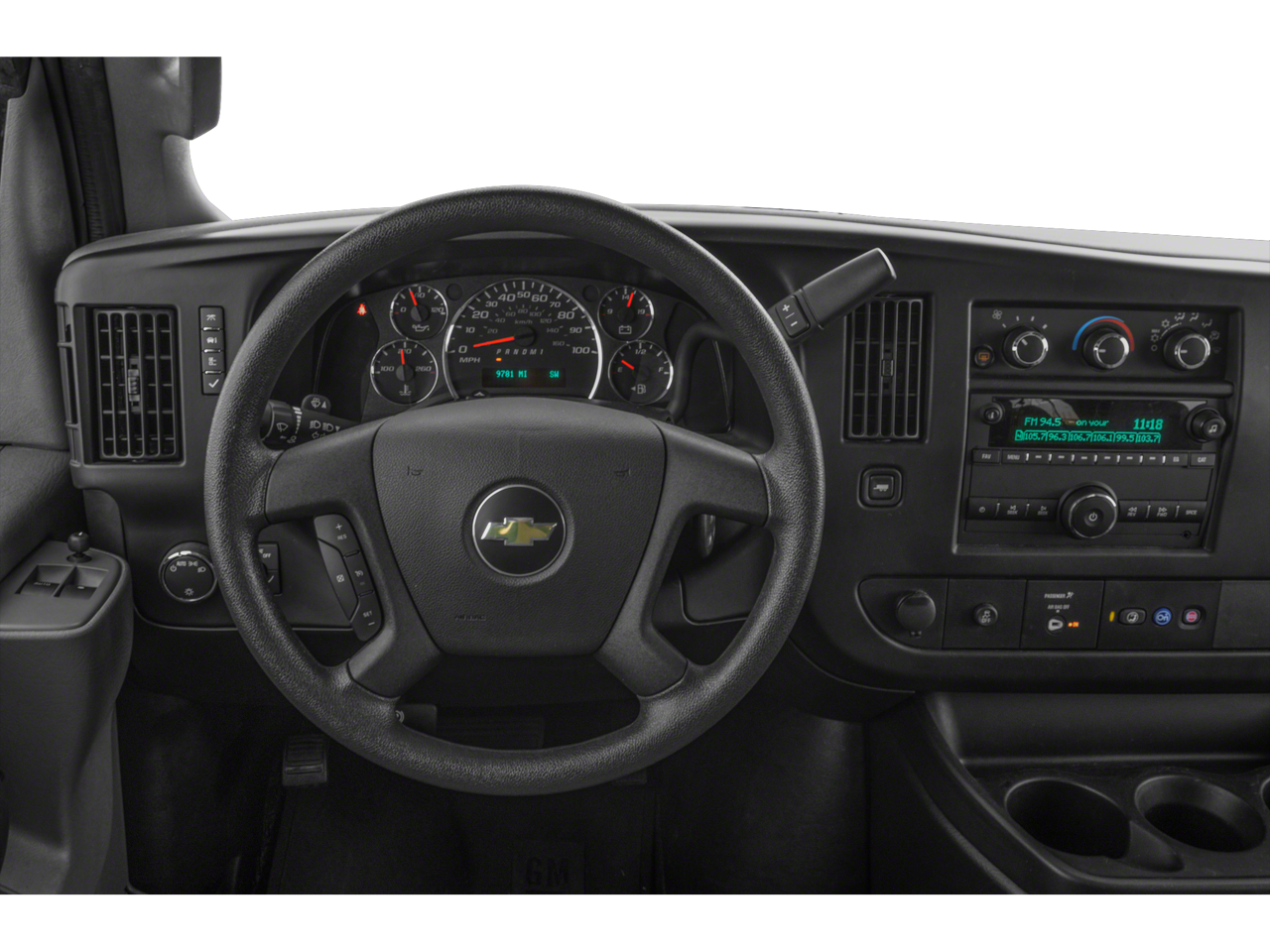

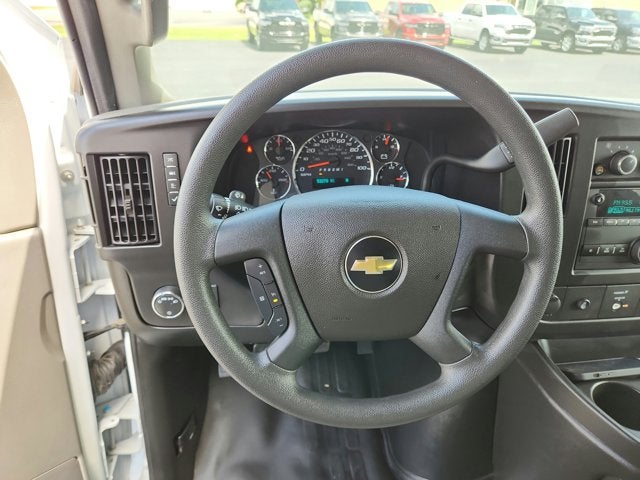

• Adjustable Steering Wheel
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass

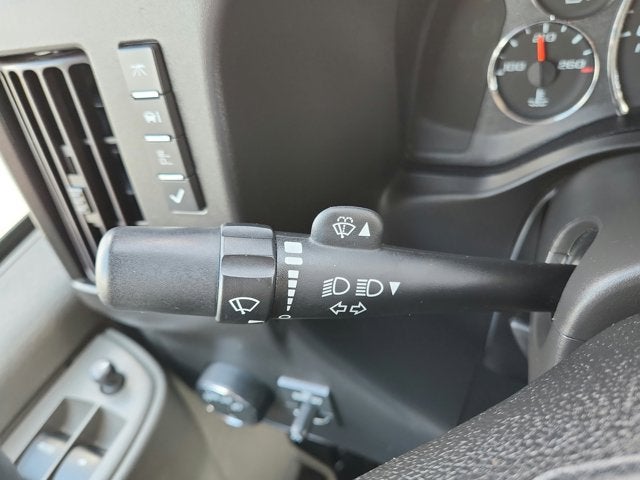

• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Telematics
• WiFi Hotspot
• Requires Subscription
• Bucket Seats
• 3rd Row Seat
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Trip Computer
• Power Windows
• Power Door Locks
• Cruise Control
• Immobilizer

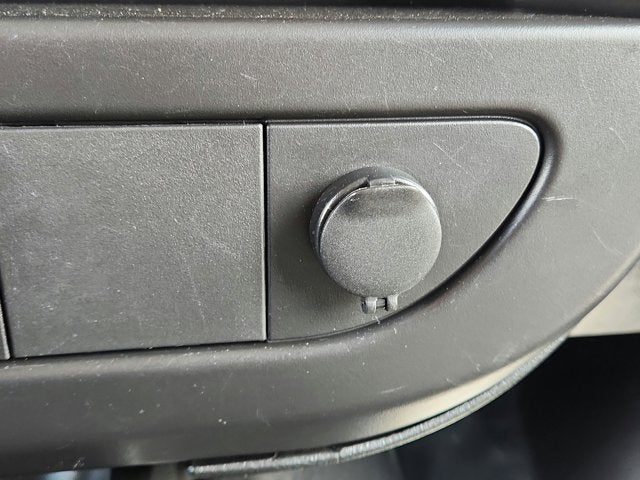

• Power Outlet
• Power Outlet
• A/C
• A/C
• Rear A/C
• Back-Up Camera
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Back-Up Camera
• Driver Air Bag
• Passenger Air Bag

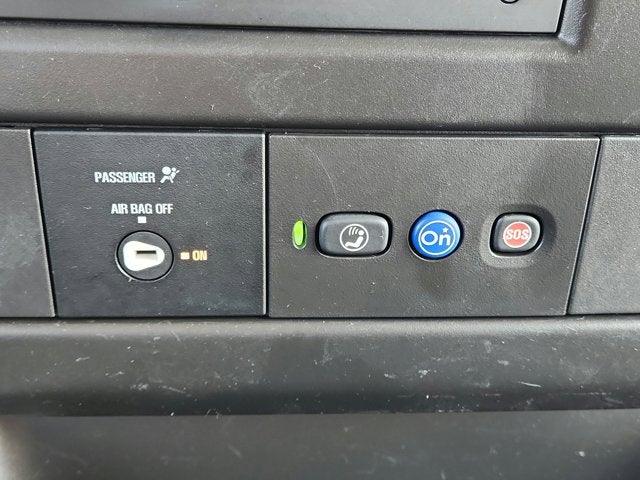

• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Length : Floor to Seat 2 (in)
• Cargo Area Length : Floor to Seat 3 (in)
• Cargo Area Length : Floor to Seat 4 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 51.8
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume to Seat 1 (ft³): 255.5
• Doors
• Side Door Type: Sliding
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 9.45
• Ground Clearance, Rear (in): 8.6
• Ground to Top of Load Floor (in): 32.2
• Height, Overall (in): 84.7
• Length, Overall (in): 243.95
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.13
• Rear Door Opening Height (in): 46
• Rear Door Opening Width (in): 53.42
• Side Door Opening Height (in): 46.7
• Side Door Opening Width (in): 45.3
• Step Up Height - Front (in): 27.25
• Step Up Height - Side (in): 27.85
• Wheelbase (in): 155.1
• Width, Max w/o mirrors (in): 79.25
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-Frame
• Interior Dimensions
• Fourth Head Room (in): 38.3
• Fourth Hip Room (in): 65.65
• Fourth Leg Room (in): 36.58
• Fourth Shoulder Room (in): 69.1
• Front Head Room (in): 40.85
• Front Hip Room (in): 65.48
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Passenger Capacity: 12
• Second Head Room (in): 38.42
• Second Hip Room (in): 65.62
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Third Head Room (in): 38.5
• Third Hip Room (in): 63.25
• Third Leg Room (in): 36.58
• Third Shoulder Room (in): 65.75
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 54.5
• Summary
• Body Code: ZW9
• Body Style: Passenger Van

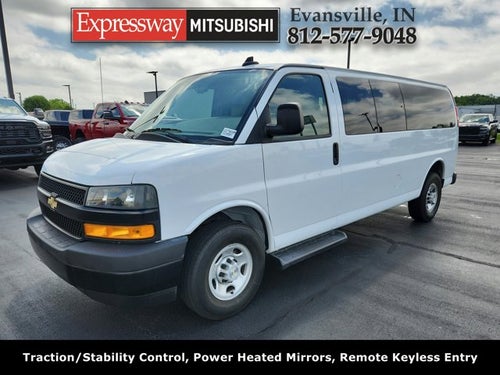

• Vehicle Name: Chevrolet Express Passenger
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZLP
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 630
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
• Vehicle
• Rear Door Type: Dual Swing-Out
• Weight Information
• Curb Weight - Front (lbs): 3189
• Curb Weight - Rear (lbs): 2984
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 15000
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
